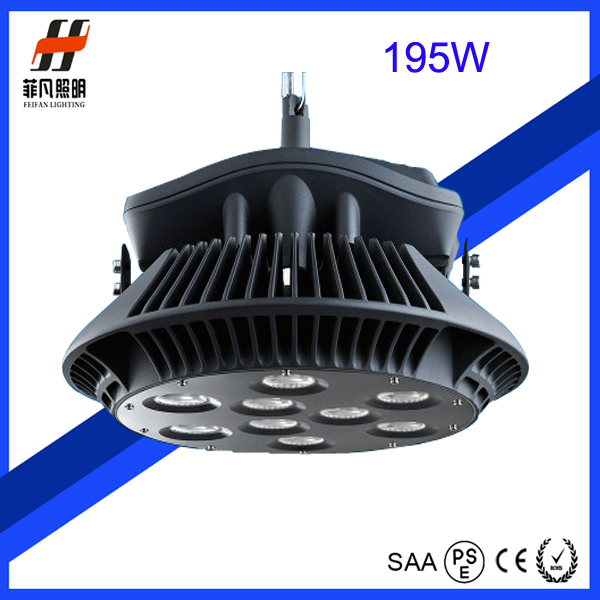

195W LED High Bay

2015 NEW Fasionable LED High bay light with unique thermal design

1.Air convection design: Fast heat dissipation.

2.Lamp body adopts aluminium alloy and made by integration of die casting molding: lighter and uniform heat dissipation.

3.Adopt advanced waterproof design: IP65

4.Convex mirror shape lens rendering light more focused.High luminous efficiency.

5.Designed by professional heat analysis software: Enlarge the effective radiating surface.

6.Adopting Metal alloy: Light weight,fast heat dissipation.

7.Smart IC and isolation protection,Performance is stable,safe and reliable.

Technical Specifications:

Item	Specifications	Parameter
Electrical Characterics	Input Voltage	AC100-277V
	Power Consumption	195W
	Power Factor	＞0.95
	Frequency Scope	50/60Hz
Mechannical Characteristics	LED Source	Epistar
	LED Quantity	---
	IP	65
	Body Material	Aluminum&PC
	Dimmable Function	NO
	Lamp Base	-----
	Dimensions	∅450*270mm
Optical Characteristics	Luminous Flux	17260lm
	CRI	>80
	Beam Angle	38/60°C
	Color Temperature	2700-6000K
Environmental Specification	Operating Temp.	-20°C-50°C
	Storage Temp.	-40°C-80°C
	Application	Indoor/outdoor use
Lifetime	>50,000hrs
Warranty	3years
